Product Hire

Your High Torque Solution
all in one box!


2 Speed RAD Pneumatic Torque Wrenches




(Air Nut Runner)

2 speed RAD air nut runner
  • Automatic 2 speed gearbox technology for high-speed rundown and single sequence precision tightening.
  • Smooth high-speed operation and high torque low speed for precision tightening.
  • Faster run down on time sensitive bolting applications reaching speeds as high as 80 RPM.
  • Stall type tool capable of accuracy of +/-5%, and repeatability of +/-2%.
Download RAD 2 Speed
Nut Runner Flyer
Download RAD User Manual

TWO Speed RAD PNEUMATIC TORQUE WRENCH TOOLS


Automatic Two Speed Technology High RPM Single Sequence Bolting - Fast Rundown - Precision Tightening

high speed RAD 20DX-2

RAD Tool
Model

Sq Drive  Tool Torque Output RPM
2 SPEED

WEIGHT
Torque Ft Lbs  Torque NM
10GX-2 3/4" 350-1000 450-1350 85 4.5 kg
15DX-2 1" 500-1500 700-2000 50 4.7 kg
25GX-2 1" 700 - 2500 950 - 3400 44 7.5 kg

High Torque Multiplier barrel is longer to accommodate the automatic 2 speed gearbox
line
wheel reaction arm
RAD Reaction Bars & Custom fittings
for every application - see more

The Total HIRE solution!



ALL RAD Torque Tools HIRE with
  •  Reaction arm
  • 3M hose, tool holder
  • Filter/Regulator/Lubricator
  • Waterproof Site box and instruction manual as standard


Delivered Australia Wide



Your High Torque Solution
all in one box!

RAD Shipping box Download RAD Regulator & Cradle


Total Hire Tool Solution

AIR REGULATOR & LUBRICATOR
RAD Pneumatic Nut Runners use an REGULATOR & LUBRICATOR between the Tool and the air supply, inside a tough plastic Cradle that holds the Tool, sockets & Torque Chart.

This setup provide 3 main functions:
  1. An adjustable Air Regulator which Sets the PSI and Controls the final torque output.
  2. A Lubricator with automatic drip oil feed to the air motor ensuring air motor longevity.
  3. A Water Trap that helps remove water from the airline.

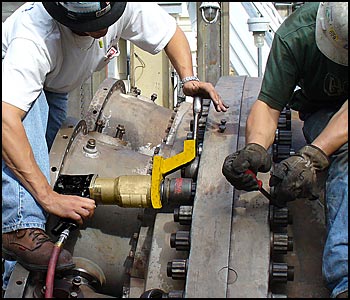

Pipe Flange RAD application custon reaction arm RAD nut runner
