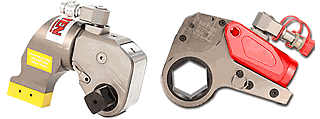

Hydraulic Torque Multiplier
The real workhorse of Heavy Industry maintenance
Square Drive Hydraulic torque tools offer powerful solutions the perfect balance of power, features & price. Hire with Impact Sockets or In-Hex Drivers
| Model | Square Drive |
Torque Output | |
|---|---|---|---|
| Ft Lbs | NM | ||
| IBT-1 | 3/4" | 134 to 1344 | 182 to 1821 |
| IBT-3 | 1" | 328 to 3278 | 444 to 4442 |
| IBT-5 | 1 1/2" | 547 to 5470 | 741 to 7412 |
| IBT-8 | 1 1/2" | 783 to 7831 | 1061 to 10,611 |
| IBT-10 | 1 1/2" | 1127 to 11,272 | 1527 to 15,274 |
| IBT-20 | 2 1/2" | 1937 to 19,370 | 2625 to 26,247 |
| IBT-25 | 2 1/2" | 2523 to 25,226 | 3419 to 34,182 |
| IBT-35 | 2 1/2" | 3535 to 35,354 | 4790 to 47,905 |
| IBT-50 | 2 1/2" | 5230 to 52,300 | 7087 to 70,867 |
Selecting Hydraulic Wrench
Ask "What Torque is needed?"
Match the best Tool for your application.
Select the Wrench model featuring the Torque required within the bottom half of its range. This leaves you with power to spare! Undoing bolts (the breakout) need more torque-power than when those same bolts were first tightened, especially that first "crack" to release stubborn nuts!
Example: If you need 1200Nm of torque. Best Tool is the 1" IBT-3 model, not the smaller 3/4" IBT-1.
Even though 1200Nm is in its range, select the bigger IBT-3 Tool for more versatile power.
Match the best Tool for your application.
Select the Wrench model featuring the Torque required within the bottom half of its range. This leaves you with power to spare! Undoing bolts (the breakout) need more torque-power than when those same bolts were first tightened, especially that first "crack" to release stubborn nuts!
Example: If you need 1200Nm of torque. Best Tool is the 1" IBT-3 model, not the smaller 3/4" IBT-1.
Even though 1200Nm is in its range, select the bigger IBT-3 Tool for more versatile power.
Low Profile Hex Cassette Wrench
The essential tool for limited clearance and long bolt applications.| Model | Hex Cassette a/f Range | Torque Output | ||
|---|---|---|---|---|
| Imperial | Metric | Ft Lbs | NM | |
| Low-2 | 3/4 - 2-1/4" | 19-65mm | 171 to 1710 | 346 to 2318 |
| Low-4 | 1" - 3-1/8" | 25-85mm | 430 to 3855 | 786 to 5226 |
| Low-8 | 1-5/8 - 4-1/8" | 41-105mm | 800 to 8151 | 1549 to 11049 |
| Low-14 | 2-1/2 - 5-3/8" | 60-135mm | 1346 to 13400 | 2725 to 18165 |
| Low-30 | 3-1/2 - 6-1/2" | 90-165mm | 3040 to 31800 | 6466 to 43108 |
A Total High Torque Hire Solution!
All Low Profile Hex Cassette Wrenches hire with 240V or Air Hydraulic Pump, Hose & Calibrated Torque Chart in a Weatherproof Case.
